22MM ring type self-locking with lamp Featured Image
  • 22MM ring type self-locking with lamp

22MM ring type self-locking with lamp

Short Description:

-Product Model: Q22A.

-Type:Self-locking.

-Material:304 stainless steel housing，PA66.

-Protection level: IP67, IK10, IP40.

-Electrical parameters: 5A /250VAC.

-Insulation resistance:≥1000MΩ.

-LED voltage: 3V-220V.

-Service temperature range:-20℃—55℃.

-Lamp bead life:40,000 hours.

-Mechanical life:30 times/min，500,000 times.

-Contact resistance:≤50Ω.


  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics Q22A

    1. Adopt flame retardant material, safety guarantee, stainless steel shell anticorrosion and dust proof.
    2. Contains PC button, silicone waterproof ring, high performance, solid and reliable.

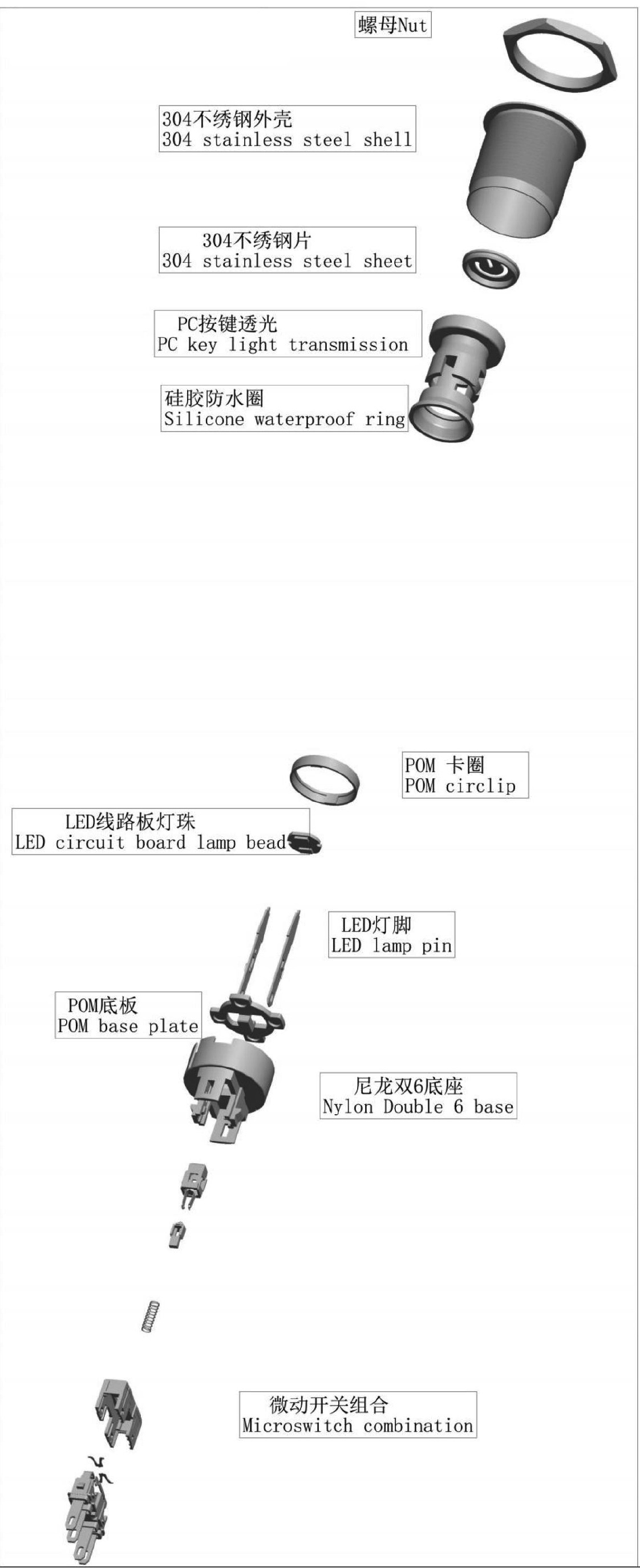

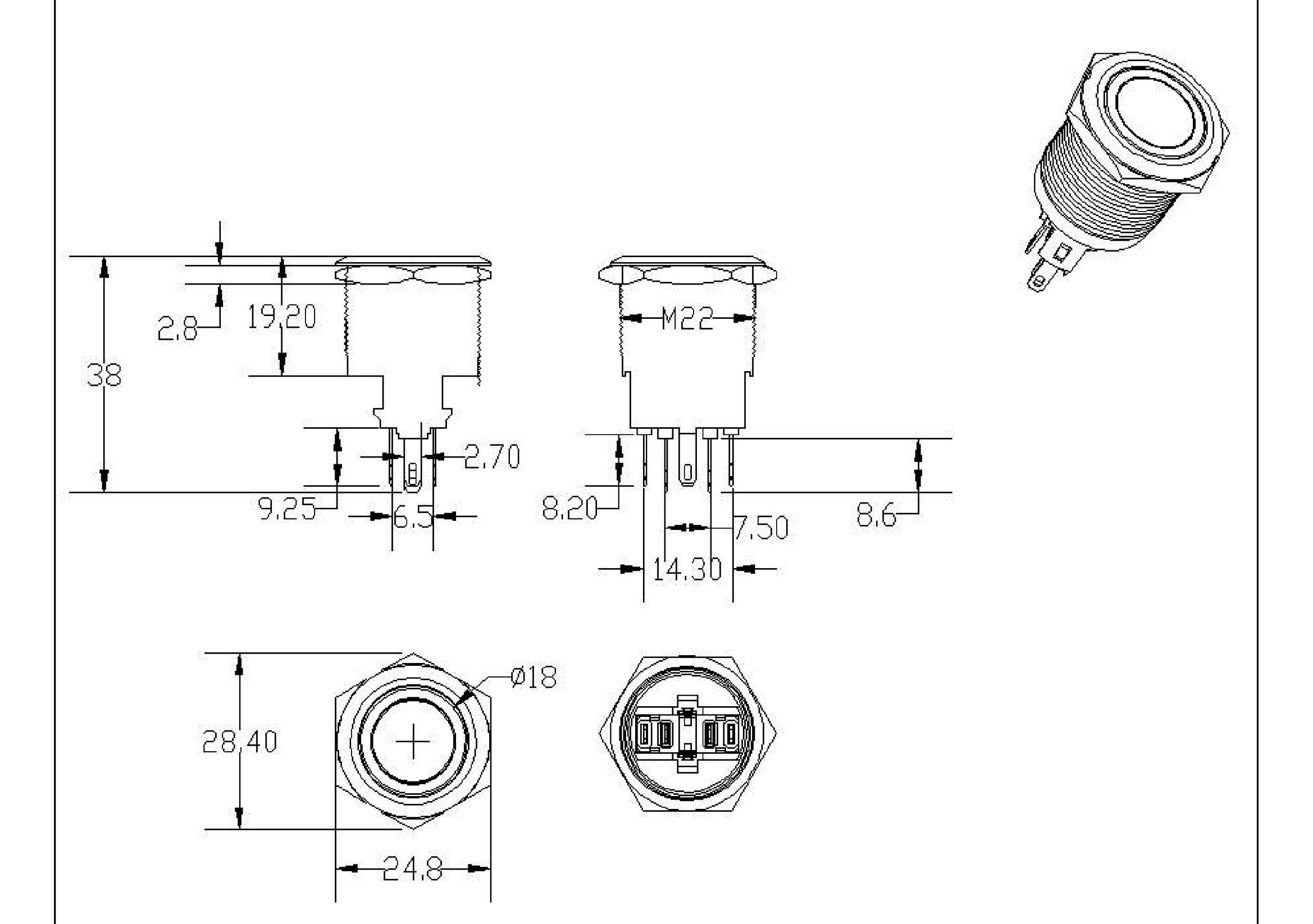

    Product Drawing

    asd
    sda3

    Application Areas Q22A

    The product can be applied to transportation,safety equipment,household appliances,medical equipment, starter,Bathroom, accesscontrol.

    Package picture

    sad
    asd
